How Does Weather Radar Know How Much Rain Is Falling?

You check your weather app and it says your neighborhood received 0.6 inches of rain. But the rain gauge in your yard says 1 inch. Which one is right?

Possibly both—because they aren't measuring rainfall in the same way.

A rain gauge measures the water that actually reaches one specific spot on the ground. Weather radar measures precipitation high in the atmosphere and uses that information to estimate how much rain is reaching the ground over a much larger area.

Understanding that difference explains a lot about how weather radar works—and why your rain gauge doesn't always match your weather app.

What Does Weather Radar Actually Detect?

Weather radar doesn't directly measure rain falling into a container. Instead, it sends pulses of radio energy into the atmosphere.

When those pulses encounter raindrops, snowflakes, hail or other particles, some of the energy is scattered back toward the radar. Meteorologists call this returned signal reflectivity.

Generally, the stronger the returned signal, the more—or larger—precipitation particles are present in that part of the atmosphere.

The radar system repeats this process in many directions and at different angles, creating a picture of precipitation over a wide area. This is what eventually becomes the familiar colored radar map you see on a weather app or forecast.

What Do the Colors on Weather Radar Mean?

Most radar maps use colors to represent the strength of the radar return.

Although the exact color scale varies, lighter greens and blues usually indicate relatively light precipitation. Yellows and oranges indicate stronger returns, while reds and purples can represent very intense precipitation.

But those colors aren't simply measuring "inches of rain."

Radar reflectivity is measured in dBZ, or decibels of reflectivity. A higher dBZ value means a stronger signal is being returned to the radar. Computer algorithms then use that information, along with other data, to estimate precipitation intensity.

That's why the colors on a radar map are best thought of as showing how strongly precipitation is reflecting the radar signal, rather than directly showing how much water has fallen on the ground.

How Does Radar Turn That Into a Rainfall Amount?

This is where some educated mathematics comes in.

Scientists have developed relationships between radar reflectivity and rainfall rate. By looking at how strongly precipitation reflects radar energy, computers can estimate how quickly rain is falling—perhaps a tenth of an inch per hour in light rain or much more during a heavy downpour.

The system can then combine those estimates over time to calculate an estimated storm total.

Modern rainfall estimates may also incorporate information from multiple radar scans, rain gauges, satellites and other observations. The goal is to produce the best possible picture of rainfall across a region. But it is still an estimate.

And rainfall rate isn't the same thing as the total amount that ultimately accumulates. Rainfall intensity and total rainfall tell us two different things about a storm.

Radar Is Looking Above You, Not at Your Yard

One of the most important things to understand about weather radar is that the radar beam usually isn't measuring precipitation at ground level.

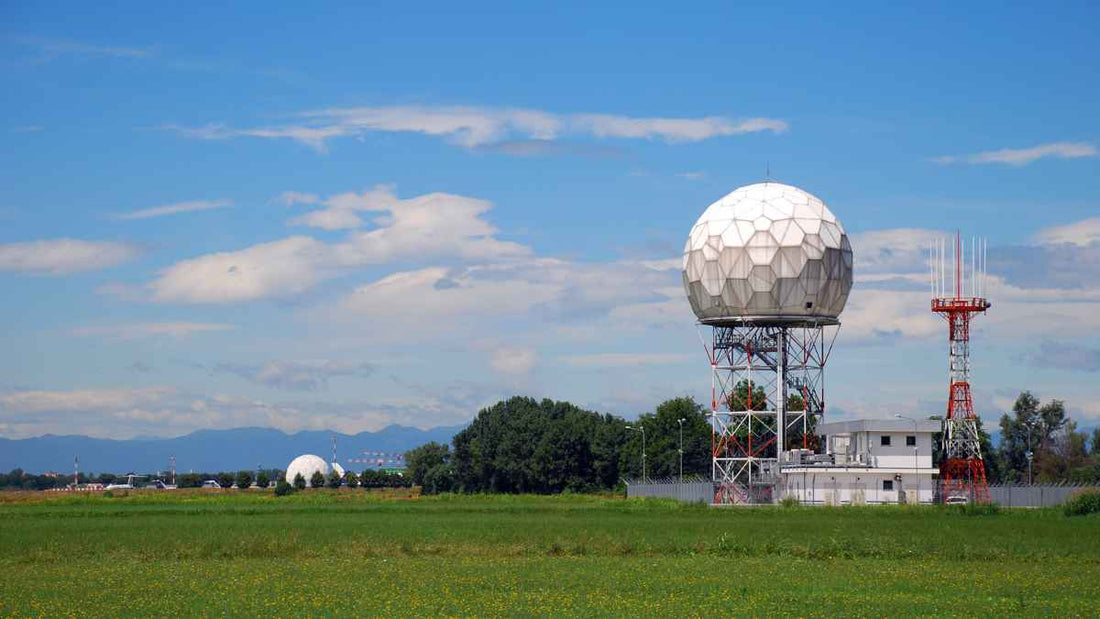

The beam travels outward and upward from the radar station. Because of the Earth's curvature and the slight upward angle of the beam, radar samples the atmosphere at increasingly higher elevations the farther it gets from the station.

That means radar may be detecting rain thousands of feet above the ground.

A lot can happen between there and your lawn. Rain can evaporate before reaching the ground, especially when the air below the cloud is dry. Wind can also carry falling raindrops sideways, so precipitation detected over one location may actually land somewhere else.

In some cases, radar detects precipitation that never reaches the ground at all. This phenomenon is called virga. It's one of several things that can happen during a raindrop's journey from a cloud toward the ground.

Why Can Radar Rainfall Totals Be Wrong for One Particular Location?

Rain isn't spread evenly beneath a storm.

A summer thunderstorm is a good example. One neighborhood may get a soaking downpour while another just a mile or two away gets a few drops. Rainfall can vary surprisingly over just a few miles—and sometimes over even shorter distances.

Even within a single property, rainfall can vary somewhat during a localized storm. This is particularly noticeable with summer thunderstorms, which can produce very localized rainfall.

Radar has to turn observations made high in the atmosphere into estimates covering areas on the ground. It simply can't reproduce every small variation in where individual rain bands and downpours actually deposited their water.

There are other complications, too. Mountains and buildings can block radar beams. Hail can produce very strong radar returns that don't translate neatly into rainfall amounts. Snow and melting snow behave differently from liquid rain. The atmosphere itself can occasionally bend radar beams in unusual ways.

All of these factors can affect rainfall estimates.

What About Dual-Polarization Radar?

Modern National Weather Service Doppler radars use dual-polarization, often shortened to dual-pol.

Older radar systems primarily sent radio waves in one horizontal orientation. Dual-pol radar sends and receives both horizontal and vertical pulses.

That provides information about the shape and size of the particles in the atmosphere and helps meteorologists distinguish among rain, snow, hail and other objects. Those different forms of precipitation develop under different atmospheric conditions, which determine whether rain, snow, sleet or freezing rain falls from the sky.

Dual-pol has significantly improved precipitation estimates, but it hasn't turned radar into a giant rain gauge. Radar is still observing precipitation remotely and estimating what ultimately reaches the surface.

Why Your Weather App May Show a Different Rainfall Total

The number on your weather app may not come directly from the nearest radar.

Weather services can combine radar estimates with weather stations, computer models, satellite observations and other data. Different apps may use different data sources and methods, which is one reason two weather apps can disagree about the same location.

Your phone also isn't necessarily receiving a measurement from your exact address. Depending on the service, the rainfall total may represent a grid cell or a nearby reporting location.

That's very different from collecting the rain that actually fell in your yard.

Radar and Rain Gauges Answer Different Questions

Weather radar is extraordinarily useful because it can show where precipitation is falling across hundreds of miles. It can reveal the shape and movement of a storm, identify areas of heavy precipitation and help meteorologists follow changing weather in real time.

A rain gauge does something much simpler: it measures the water that actually landed in one place.

So when your rain gauge says 0.9 inches and an app says 0.6 inches, the difference doesn't necessarily mean something went wrong. The radar-based number is an estimate for an area. Your gauge is a measurement from a particular point within that area.

And when rainfall is highly localized, those two numbers can be surprisingly different.
